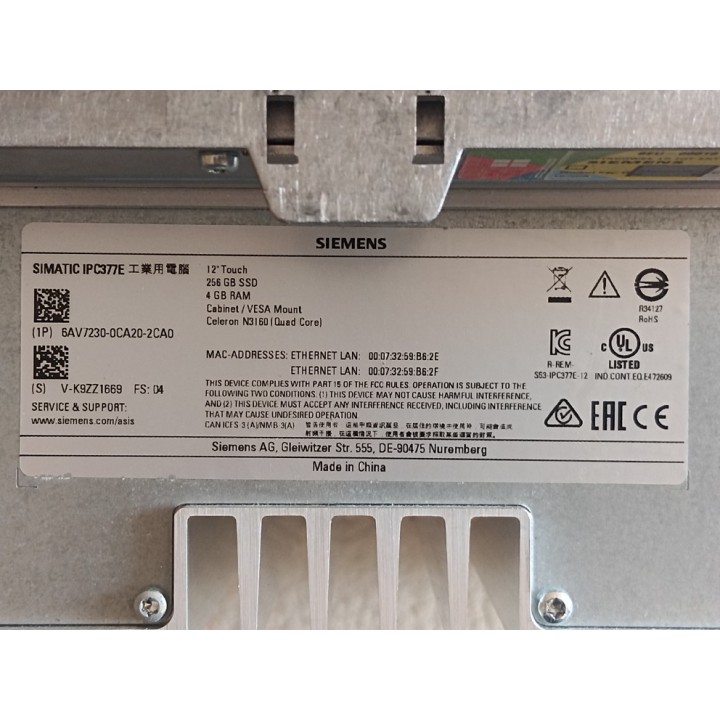

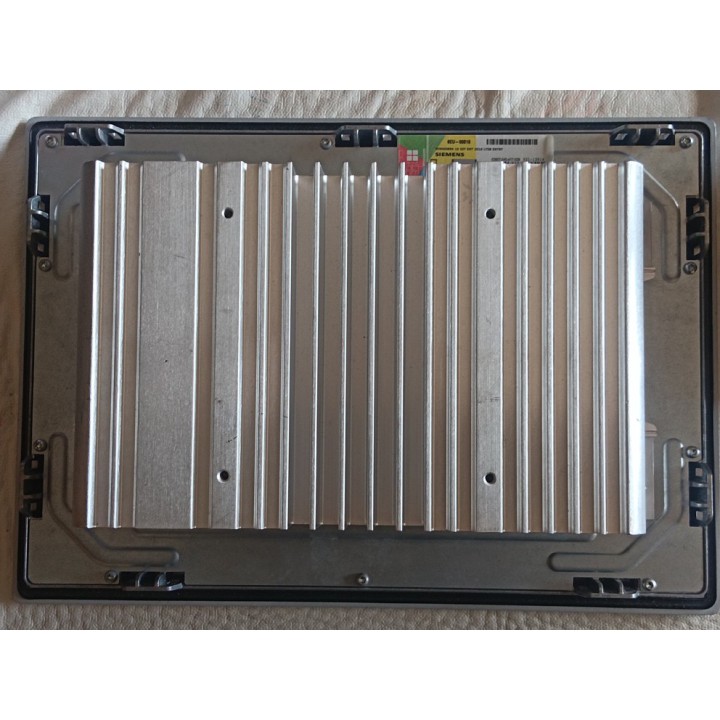

SIEMENS SIMATIC IPC377E 6AV7230-0CA20-2CA0

Device

12" device

15" device

19" device

Weight

3.6 kg

5.1 kg

6.0 kg

Power supply ¹

24V DC (20.4 to 28.8 V)

Power consumption (DC):

The current may differ depending on the operating mode and extensions.

Continuous current

• 24 V, 1.4 A

Continuous current

• 24 V, 1.5 A

Continuous current

• 24 V, 1.9 A

maximum current

• 2.5 A at 20.4 V

Noise emission

< 40 dB(A) according to DIN 45635-1

Degree of protection

• IP40 (except front panel)
• IP65 (front panel)

in accordance with IEC 60529

Protection class

Protection class III in accordance with IEC 61140

Quality assurance

In accordance with ISO 9001

Radiation Emission (Enclosure port)

in accordance with IEC 61000-6-3 + A1/ EN61000-6-4+A1

30 to 230 MHz / 40dB(μV/m) quasi-peak

230 to 1000 MHz / 47dB(μV/m) quasi-peak

1 GHz to 3 GHz / 76 dB(µV/m) peak, 56 dB(µV/m) average

3 GHz to 6 GHz / 80 dB(µV/m) peak 60 dB(µV/m) average

Immunity with regard to conducted interference on the supply lines

± 2 kV in accordance with IEC 61000-4-4; Burst
± 1 kV in accordance with IEC 61000-4-5; Surge, line to line

Noise immunity on signal lines

± 1 kV to IEC 61000-4-4; Burst; Length < 30 m

± 2 kV in accordance with IEC 61000-4-4; Burst; length ≥ 30 m

± 2 kV in accordance with IEC 61000-4-5; Surge; length ≥ 30 m

Immunity to electrostatic discharge

± 6 KV contact discharge at the front in accordance with IEC 61000-4-2
± 8 kV air discharge in accordance with IEC 61000-4-2

Immunity to RF interference

10 V/m, 80 to 1000 MHz,

80 % AM according to IEC 61000-4-3

3 V/m, 1.4 GHz to 6 GHz, 80 % AM according to IEC 61000-4-3

Conducted Emission (Low voltage DC mains port), in accordance with IEC 61000-6-4 + A1

0.15 to 0.5 MHz / 79 dB (μV) Q, 66 dB (μV) M

0.5 to 30 MHz / 73 dB (μV) Q, 60 dB (μV) M

Conducted Emission(Telecommunications/Network Port),

in accordance with IEC 61000-6-4 + A1

0,15 to 0,5 MHz:

97 dB(μV) to 87 dB(μV) Q

84 dB(μV) to 74 dB(μV) M

0,5 MHz to 30 MHz:

87 dB(μV) Q / 74 dB(μV) M

Immunity to magnetic fields

30 A/m, 50/60 Hz according to IEC 61000-4-8

Processor

• Intel Celeron N3160: Quad Core, 1.6 GHz, burst frequency 2.24 GHz, 2 MB 2nd level cache, 6 W TDP

Main memory

DDR3L memory up to 8 GB, 1× SODIMM modules / non-ECC

Expansion slots

• 1 Mini PCIe half-size slot
• 1 mSATA slot with USB2.0 bus signal

Hard disk drive, optional

≥ 500 GB, 2.5" HDD

Solid state drive, optional

256GB, 2.5" SSD

Floppy and CD-ROM drive

External, can be connected via USB port ¹

USB stick

External, can be connected via USB port

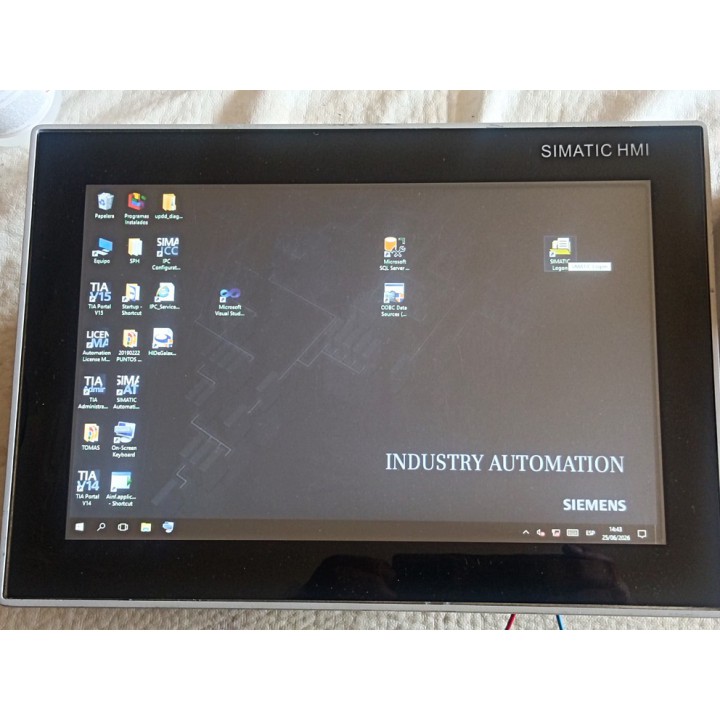

Display, resolution

• 12" screen diagonal with backlighting,
  resolution 1280 × 800 pixels
• 15" screen diagonal with backlighting,
  resolution 1366 × 768 pixels
• 19" screen diagonal with backlighting,
  resolution 1366 × 768 pixels

Touch controller

Resistive Touch controller ETP-CP-MER4485XRU
Touch screen analog resistive
Touch force with R0.8 Delin stylus pen, at 250g forces

Backlighting (MTBF)

Half brightness life time, typical

LCD

min. 50000 h at 25 °C, 50% brightness

Pixel error class in accordance with ISO 9241-307

III

Graphics controller

Integrated Graphic Controller

Resolution

• at least support 2 channels: 1 x VGA(DB-15) + 1 x DP(DDI)
• 32bit, support from 640*480 pixels to 1920*1200 pixels
• support backlight control

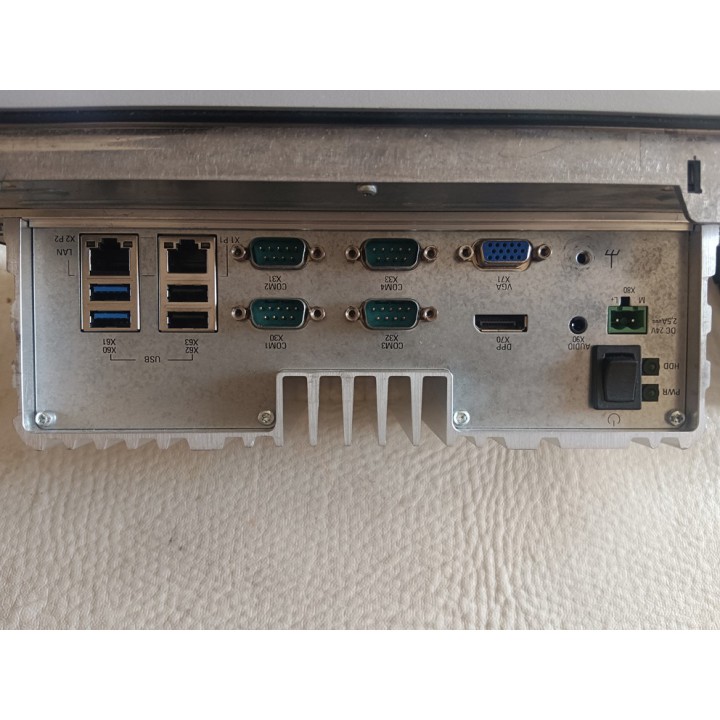

COM

• RS 232, max. 115 Kbps, D-sub connector, 9-pin
• RS 232 /RS 422 /RS 485 ¹ (optional), max. 115 Kbps, D-sub connector, 9-pin

USB

• USB 2.0, high speed/high current,
• USB 3.0, high current

  You can find additional information in the section Power requirements of additional components.

LAN interface X1 P1, RJ45

Intel Ethernet Controller I211-AT

10, 100, 1000 Mbps

LAN interface X2 P1, RJ45

Intel Ethernet Controller I211-AT

10, 100, 1000 Mbps

Keyboard, mouse

Connection via USB port
