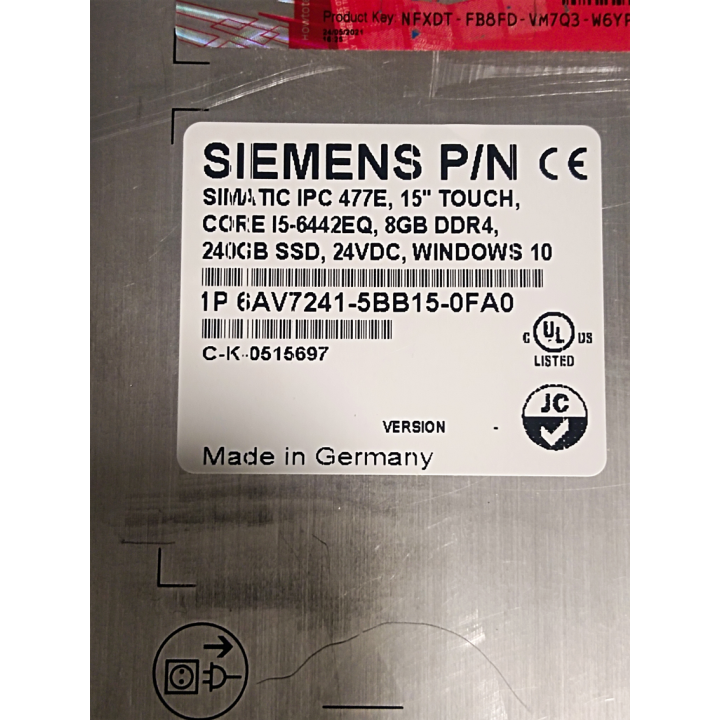

SIEMENS SIMATIC IPC 477E 15" TOUCH 6AV7241-5BB15-0FA0

The SIMATIC IPC477E is a fan-free embedded panel PC for complex visualization and control tasks with single- and multi-touch display.

It is maintenance-free and can be configured, integrated, and commissioned flexibly and simply. With its rugged metal enclosure, it can withstand even severe mechanical stress.


Application

The SIMATIC IPC477D is designed for use directly on the machine, where the combination of ruggedness and maximum reliability is a major priority (the reliability of an embedded platform) and the openness of a PC is also required (e.g. module expansion and the connection of I/O devices such as printers, keyboards, etc.).

Due to the minimal mounting depth, it can also be used in confined spaces

. The PC can be used in factory automation as well as in process automation and can be mounted in control cabinets, control desks or 19" cabinets/racks.

The SIMATIC IPC477D is the ideal platform for PC-based Automation:

• PC-based visualization on-site at the machine with SIMATIC WinCC Advanced or WinCC Professional
• PC-based control with SIMATIC WinAC RTX
• SIMATIC WinCC Client (standard or multi client) for distributed operator control and monitoring
• SIMATIC WinCC as single-user station solution for centralized operator control and monitoring (also in combination with WinCC WebNavigator server)

Siemens offers the complete modular system of harmonically matched automation components.



SIMATIC IPC477E at a glance

Fast data processing for high productivity

• • • Top performance in the embedded segment with 6th generation Intel Core-i processors
    • Scalable with 4 different processors – from Intel Celeron to Intel Xeon
    • Latest memory technology with ECC and DDR4 up to 16 GB

Highly flexible mounting for space-saving installation

• • • Low mounting depth (ambient temperature up to 50°C)
    • Installation in control cabinets and consoles, 19" cabinets/racks

High degree of industrial functionality and flexibility for implementing embedded solutions

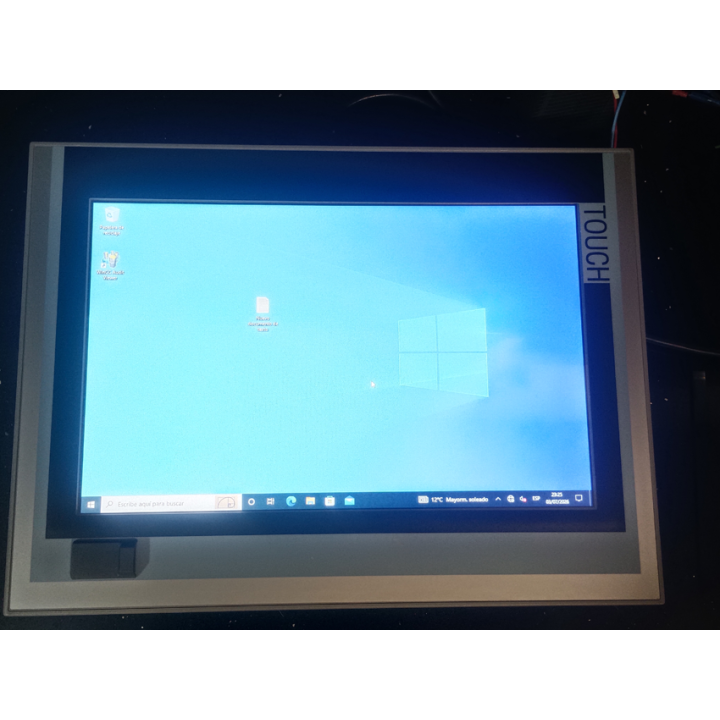

• • • Brilliant touch displays as single or multitouch versions in widescreen formats 15", 19" and 22"
    • Flexible operating design with installation in landscape or portrait format
    • Flexible memory concepts (SSD, CFast, or HDD)
    • 3 x LAN 10/100/1000 Mbps connections; teaming-capable
    • Onboard PROFINET interface (optional)

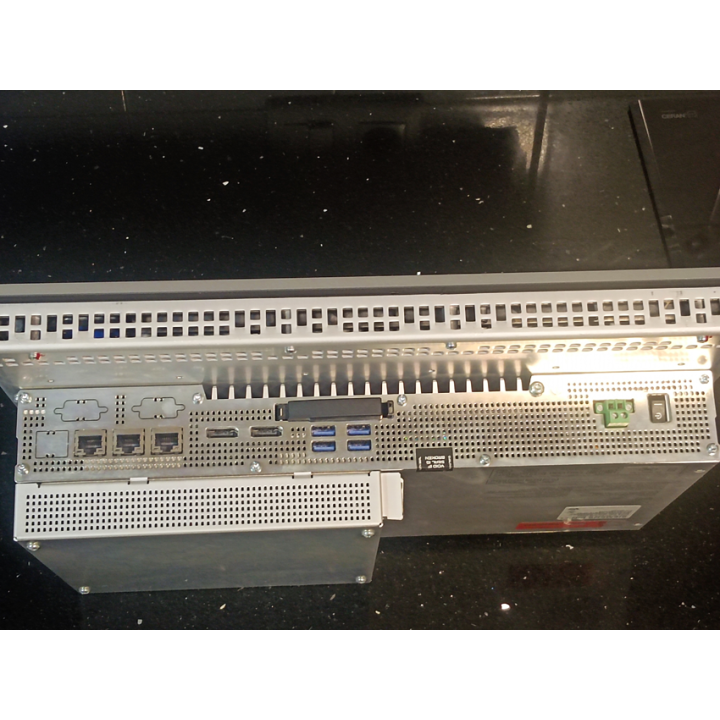

    • 4 x high-speed USB 3.0 ports at back, 1 x USB 3.0 at front; 2 serial interfaces
    • Can be expanded easily through PCIe slot
    • On/off switch

High system availability in order to reduce the risk of potential failures and maintenance costs

• • • Maintenance-free because of no rotating parts (fans, hard disks) and operation without battery possible
    • 512 KB NVRAM for SIMATIC Software Controller in order to back up critical data
    • System-tested SIMATIC software

High investment security in order to reduce engineering costs

• • Long-term availability: Service and support period of 8 to 10 years after market launch
  • Compatibility with regard to installation and interfaces

Item Description:

Used: An item that has been used previously. The item may show some signs of wear, but is fully functional. This item may be a floor model or an item that has been returned to the seller after a period of use.

Important Information

You will receive the item as shown and described. No additional accessories are included.

Warranty Information: 30-day warranty on all products. If the item does not work, it will be replaced or refunded.
