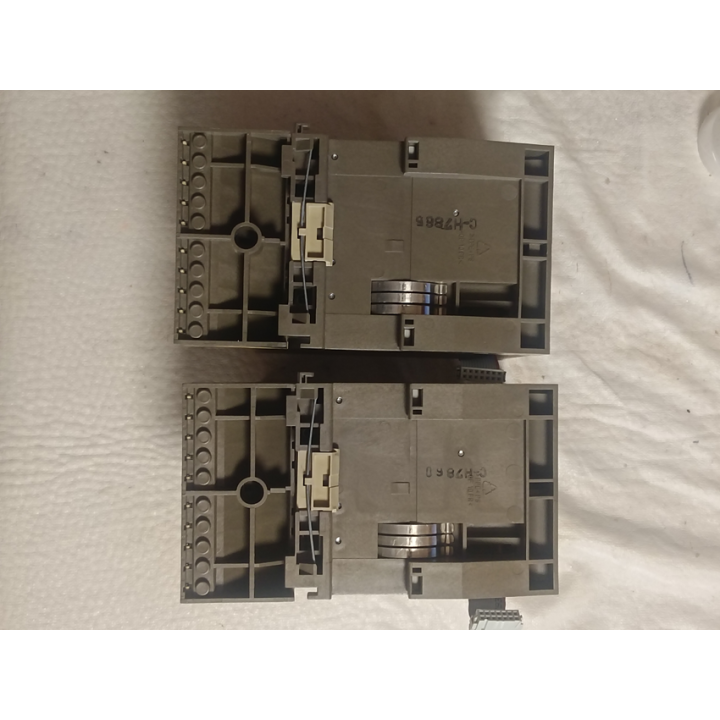

SIEMENS SIMATIC S5 6ES5 385-8MB11 HIGH SPEED COUNTER

Description:  The 6ES5 385-8MB11 is a high-speed counter module designed for Siemens SIMATIC S5 PLC systems, compatible with models S5-90U, S5-95U, S5-100U, ET 100U, and ET 200U. This module supports high-frequency counting, with input signal capabilities up to 500 kHz, making it suitable for applications that require rapid counting of pulses or events.

Device Description
This module can operate as a position counter (PD) or as a standard counter (C) and includes two digital inputs for reference and enabling, plus two digital outputs for setpoint triggering. Its high frequency and flexibility make it ideal for industrial applications involving high-speed processes.

Technical Data
Counting Frequency: Up to 500 kHz
Modes: Position decoder (PD) or counter (C)
Sensor Input:
        5V Differential Input or 24V DC Single-ended Input
Digital Inputs:
        2 Inputs for reference and enabling signals
Signal Levels:
            "1" Signal: +13 to +33 V DC
            "0" Signal: -33 to +5 V DC
Digital Outputs:
        2 Outputs for setpoints reached (1 and 2), current handling from 5 mA to 0.5 A
        Residual Current: Max 0.5 mA at "0" signal
        Switching Current for Lamps: 0.22 A (5 W)
        Output Voltage: L+ minus 2.2 V for "1" signal
Cable Length: Max 100 meters for unshielded cables
Protection: Short-circuit protected, indicated by a red LED for short circuits
Power Supply Requirements: 24V DC
        Rated Voltage Range: 20 to 30 V DC, ripple included
        Fuse: Internal, T 5A slow-blow
Power Consumption: Approximately 1.9 W plus total output current
Weight: Approximately 250 grams

Installation and Usage
Installation: Mounts within the S5-100U rack, with configuration settings accessible on the module for mode selection.
Configuration: Select operating mode (PD or C) using the module's switches.

Applications
This high-speed counter is optimal for applications like rotary speed monitoring, pulse counting for high-speed processes, and tracking mechanical movements within industrial automation.
Maintenance Recommendations
Check Connections: Ensure all connections are secure and that the input/output settings are correctly configured for application requirements.
Monitor LED Indicators: Use LED signals to verify operation status and identify potential issues such as short circuits.
