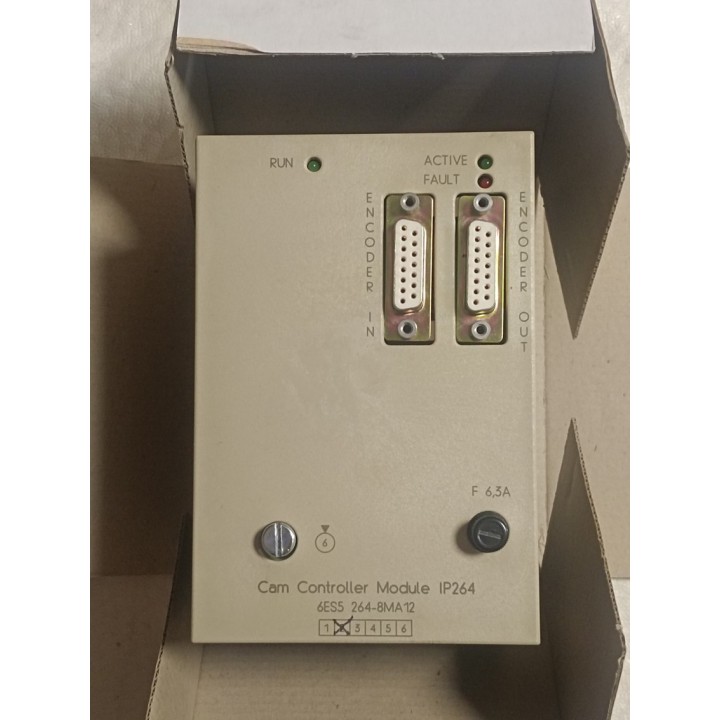

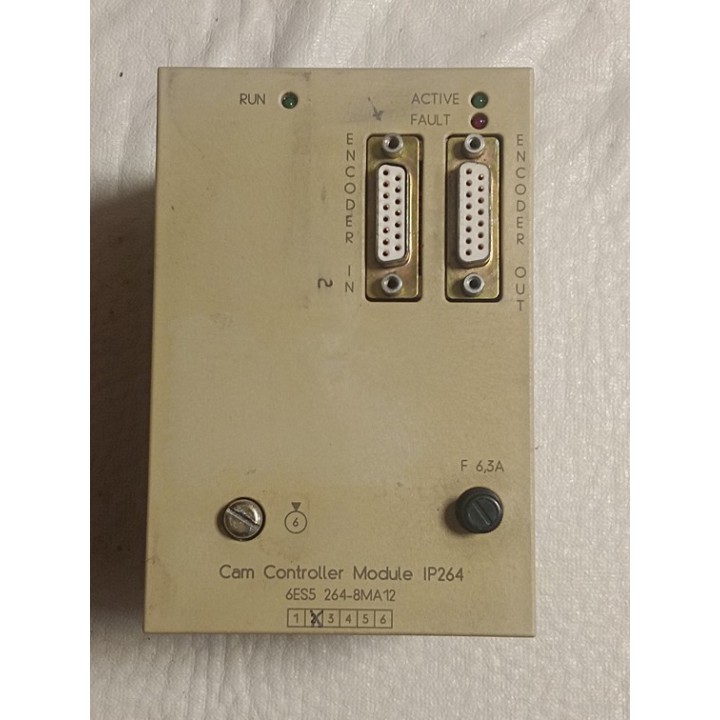

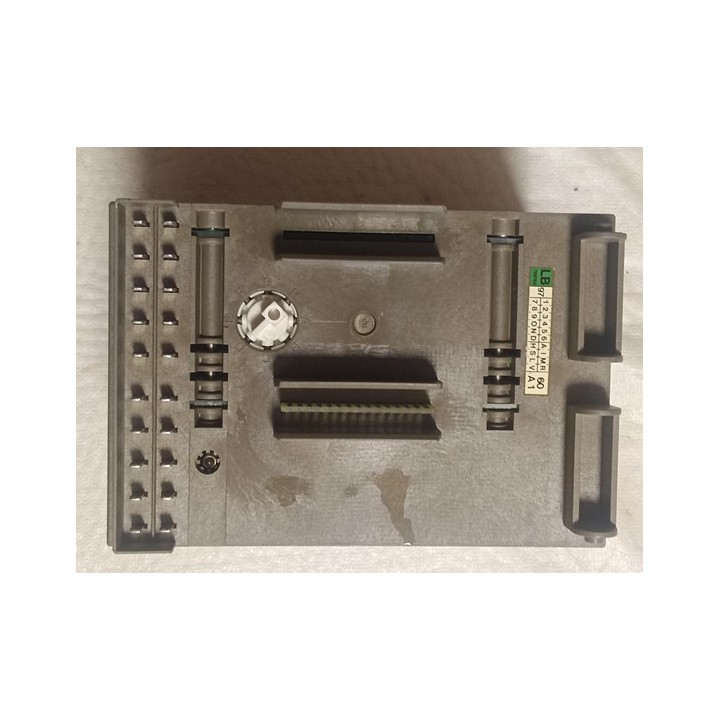

SIEMENS CAM CONTROLLER MODULE IP264 6ES5 264-8MA12

The 6ES5 264-8MA12 is an Electronic Cam Controller Module for the Siemens SIMATIC S5 series, compatible with S5-90U, S5-95U, S5-100U, ET 100U, and ET 200U PLCs. This module is ideal for applications requiring precise positioning control with cam sequences, offering programmable cam profiles and high switching accuracy, making it well-suited for both rotary and linear motion applications.

Device Description

The IP 264 module provides highly accurate switching of up to 32 cams per program, with options for separate programs for forward and backward directions, allowing it to support complex motion profiles. Its dead-time compensation feature ensures that each cam signal remains accurate, even at variable speeds, achieving high precision in automation tasks.

Technical Data

 Number of Cams: 32 cams per direction (supports forward and backward cam programs)

 Switching Accuracy:

 Better than 1 degree at 2400 rpm

Response time: < 60 µs

Dead-Time Compensation: Dynamic shift compensates for actuator delays, crucial for maintaining accuracy.

Output Signal: 24V, 0.3A per output

Control Interfaces:

Supported Sensors: Incremental encoders, absolute SSI encoders, and 24V digital sensors

Sensor Output: Additional pass-through for cascading sensor signals

Cable Length (Shielded): Up to 100 meters

Power Consumption: Approximately 4W

Functional Capabilities

Cam Programs:

Each direction can have its own 32-cam program.

Alternatively, a single 64-cam program can manage both directions if needed.

Dead-Time Compensation:

Adjusts cam activation based on speed to counteract any delay in actuator response.

Direct Process Connection:

Enables direct connection of actuators to the module’s outputs, allowing for efficient response times and minimal intermediate circuitry.

Installation and Configuration

Mounting: Fits into a standard slot on the PLC rack.

Addressing: Functions like a 4-channel analog module in the S5 addressing scheme, facilitating integration.

Programming: Programmed in STEP 5 with dedicated cam settings and compensation features for each track, allowing for complex motion control.

Typical Applications

This module is essential for tasks such as:

Rotary and Linear Positioning: Ideal for applications requiring precise cam-based switching.

High-Speed Production Lines: Where consistent timing and precision are critical.

Motion Control in Automation: Especially where adaptive cam switching enhances productivity and accuracy.

Maintenance and Recommendations

Monitoring and Calibration: Periodic verification of cam settings and adjustments to maintain accuracy.

Wiring and Connections: Use shielded cables in high-interference environments to preserve signal integrity.
