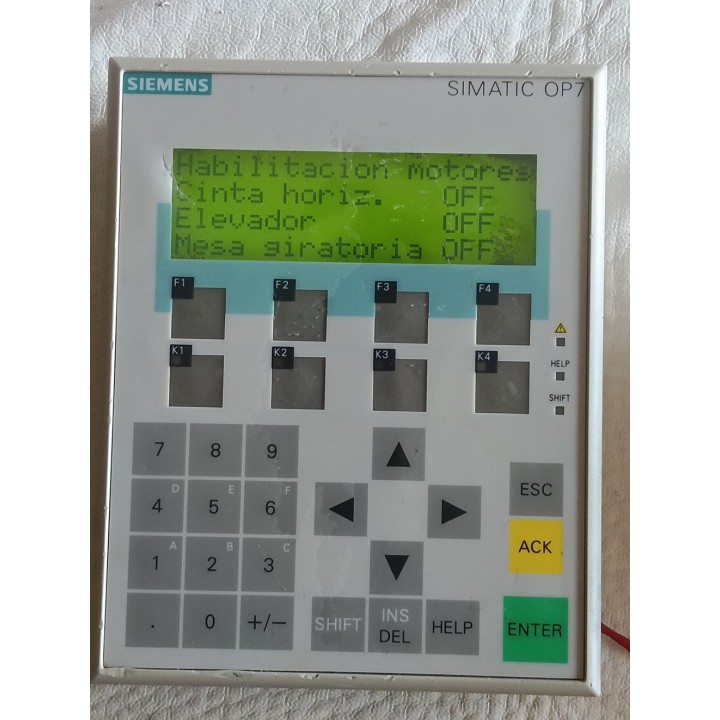

SIEMENS PANEL OP 7-DP 6AV3607-1JC20-0AX1

Description: OP seven / DP operator panel liquid crystal display, backlit by light emitting diodes four levels, twenty characters per line, SITIC S seven, M seven, PROFIBUS DP one point five MEGABAUDS with approval of Laboratoire des Assureurs / Canadian Standardization Association.

Technical data

		***Spare part*** Operator panel OP7/DP LC display, LED backlit 4-tier, 20 characters/line, SIMATIC S7, M7, PROFIBUS DP 1.5 Mbaud with UL/CSA approval
General information
Customer-specific configuration		No
Display
Design of display		LC display, black/white
graphics-enabled		No
Line display
● Number of lines		4
● Number of characters per line		20
Backlighting
● MTBF backlighting (at 25 °C)		100 000 h
Control elements
Control elements		Keys
Keyboard fonts
● Membrane keyboard		Yes
— user-definable label membrane keys		Yes
● Function keys
— Number of function keys		8
— Number of function keys with LEDs		4
● System keys
— Number of system keys		22
● Numeric keyboard		Yes
● alphanumeric keyboard		Yes
● hexadecimal keyboard		Yes
● Multi-key operation		No
Touch operation
● Design as touch screen		No
Installation type/mounting
Mounting position		vertical
maximum permissible angle of inclination without external ventilation		90°
Supply voltage
Type of supply voltage		24 V DC
UPS connectable (serial)		No
Input current
Current consumption (rated value)		0.19 A
Processor
Processor type		X86
Drives
Diskette drive		Yes
CD-ROM		No
Hard disk		No
Memory
Type of memory		Flash / RAM
Memory available for user data		128 kbyte
Type of output
Info LED		Yes
Power LED		No
Error LED		No
Time of day
Clock
● Type		Software clock, synchronizable, no battery backup
● retentive		No
● synchronizable		Yes
Interfaces

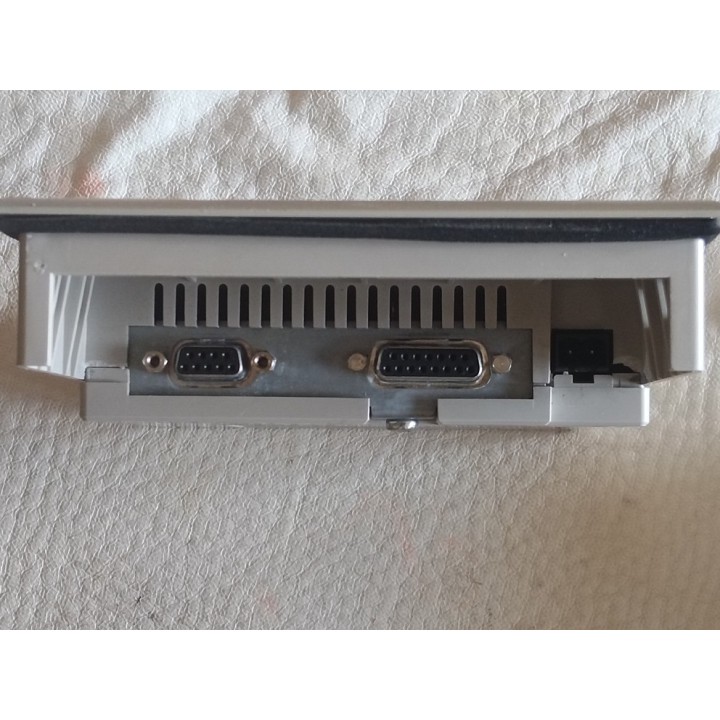

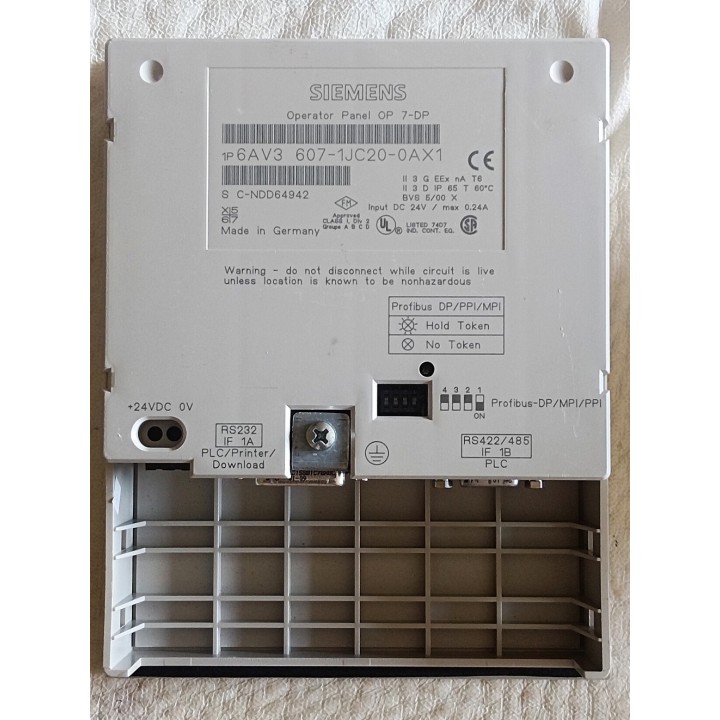

Interfaces/bus type		1x RS 232, 1x RS 422, 1x RS 485 (max. 1.5 Mbit/s)
Number of RS 485 interfaces		1
Number of parallel interfaces		1
USB port		No
PC card slot		No
CF card slot		No
Special interfaces		No
Degree and class of protection
IP (at the front)		IP65
IP (rear)		IP20
Standards, approvals, certificates
Certificate of suitability		CE, GL, BV, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus, EX zone 2/22
Ambient conditions
Ambient temperature during storage/transportation
● min.		-25 °C
● max.		70 °C
Relative humidity
● Operation, max.		95 %
Operating systems
pre-installed operating system		Rmos
Configuration
Message indicator		Yes
Alarm system (incl. buffer and acknowledgment)		No
Process value display (output)		No
Process value default (input) possible		No
Recipe management		No
Configuration software
● Configuration tool		ProTool / Lite Version 2.51 or higher or Version 1 (to be ordered separately)
Peripherals/Options
Additional software components loadable		No
Dimensions
Width of the housing front		144 mm
Height of housing front		180 mm
Overall depth		38.5 mm
Weights
Weight (without packaging)		0.43 kg
Other
free hotline		Yes
last modified:		12/10/2020
